技术参数
| 轮辋直径 | 14″ – 26″ |
| 拆胎车轮重量 | 500kg |
| 可拆车轮宽度 | 780mm |
| 可拆车轮直径 | 1600mm |
| 液压动力单元 | 1.5KW 380V – 3PH（220V 可选） |
| 齿轮箱电机 | 2.2KW 380V – 3PH（220V 可选） |
| 胎边压力 | 2500kg |
| 移动控制手柄电压 | 24V |
| 设备净重 | 588kg |
| 设备占地面积 | 2500 × 2000mm |
| 电压 | 220/400V 50/60HZ 1P/3P 可选 |
产品介绍
· 双速旋转电机
· 进口泵站
· 标配铝爪保护套
· 占地面积小

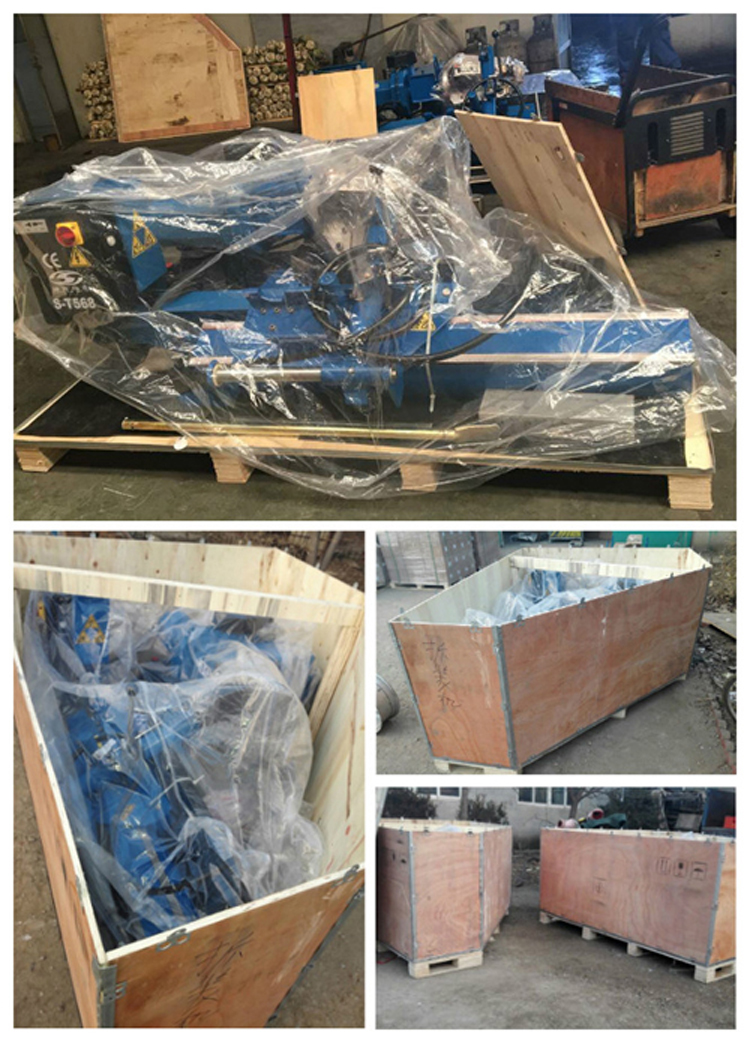

重量&包装尺寸
型号：T568-2
毛重（kg）：650
包装尺寸 L×W×H（mm）：1830×1480×1080
